Multi Purpose HK935FC Excavator Grabber Crawler Grabber Rubber
Block Crawler for Logging camp
● Engine emmissions conform to the latest environmental
regulations.
● It is equipped with the world famous brand hydraulic components.
● It has wide operating range, powerful grabbing force and high
working efficiency.
● It is widely used in agriculture and forestry, such as stacking,
loading and unloading operations of hay bales and grain bags in
agriculture, and stacking, loading and unloading operations of
round logs or timber in forestry.
Product Specifiion
Meet the Stage IV emission standards for diesel fuel for non-road
mobile machinery.
| Total width | mm | A | 2800 |
| Total height ( to top of cab ) | mm | B | 3046 |
| Counterweight Ground Clearance | mm | C | 1106 |
| Tail Swing Radius | mm | D | 2980 |
| Track Ground Length | mm | E | 3275 |
| Track length | mm | F | 4030 |
| Track Gauge | mm | G | 2200 |
| Undercarriage width | mm | H | 2800 |
| Track plate width | mm | I | 600 |
| Distance from slewing center to rear end | mm | J | 2970 |
| Grabber height | mm | K | 2447 |
| Maximum working height | mm | L | 14120 |
| Maximum unloading height | mm | M | 11673 |
| Bucket bar length | mm | N | 4500 |
| Boom length | mm | O | 8500 |
| Maximum working radius | mm | P | 12700 |
| Maximum gripping depth | mm | Q | 9780 |
| Maximum depth of small arm | mm | R | 6733 |
| Grabber height | mm | S | 2447 |
| Engine brand | 国四 | 1 | WP4.6N |
| Main pump flow rate | L/min | 2 | 220*2 |
*All product photos in this alogue are based on the actual product.

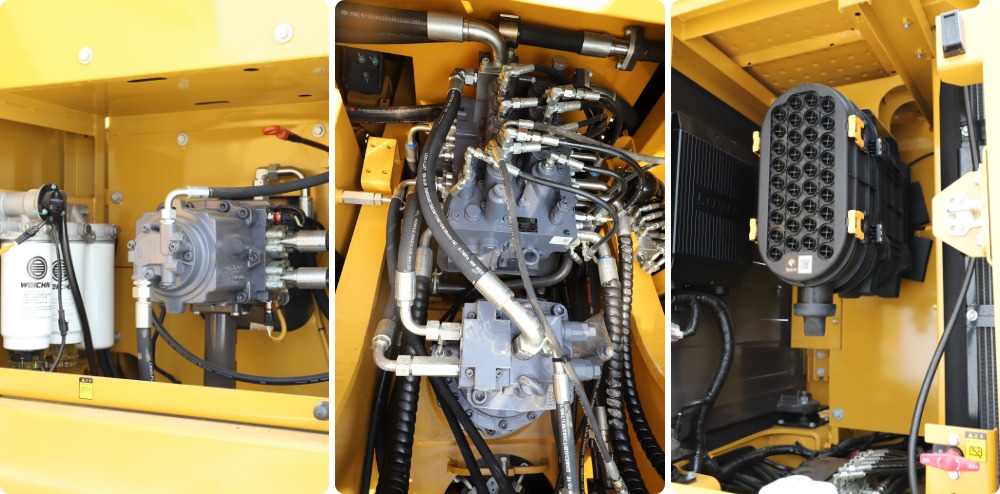

Product Construction
Engine : HEKUANG customized WP4.6N low-speed and high-torque engine,
leading the industry in thermal efficiency. The operating
efficiency of the whole machine is increased by 10%, and the fuel
efficiency is increased by 15%.
Main pump: Displacement increased by 8% compared with E generation and
competitors, electronically controlled main pump improves system
responsiveness and is more efficient.
Main valve: Exclusive custom-tuned main valve, internal flow channel
optimization, pressure loss reduced by 10%, better response.
Newly developed Laval intelligent operating system can realize
power system management, intelligent interaction, automatic
identifiion of working conditions, auxiliary operation,
personalized customization and other functions.
Operating system: The newly developed HEKUANG intelligent operating system can
realize power system management, intelligent interaction, automatic
identifiion of working conditions, auxiliary operation,
personalized customization and other functions.
1. Intelligent vehicle control : The driver can remotely control
the excavator by connecting the cell phone to the car's Bluetooth
to turn on/off the power, start/off the engine, turn on/off the air
conditioner, and turn on/off the lights.
2. Intelligent Multimedia : Driver can answer phone calls and play
music through the monitor after connecting his cell phone to the
vehicle's Bluetooth.
3. Intelligent Attachment : Selecting different attachment modes
through the screen can quickly realize the optimal matching of
attachments.
Cab: Adopting new structure, extending up to meet the requirements of
50 tons ROPS regulations, panoramic sunroof, breaking through the
concept of conventional construction machinery.
